Boss AW-3 Auto Wah Guitar Pedal
Other Options
info | specs | videos |
---|

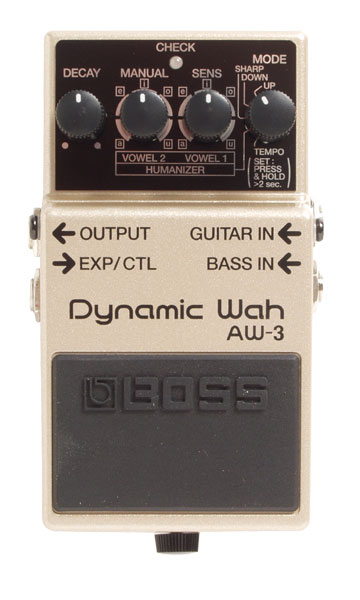

The BOSS AW-3 Dynamic Wah pedal gives guitarists a wide range of classic auto-wah and dynamic wah effects, plus a new "Humanizer" effect which can simulate human vowel sounds. A Bass input provides a variety of funky wah sounds for bass guitar.
The Boss AW-3 Auto Wah Guitar Pedal Features:
- Compact pedal creates a variety of classic "wah" effects
- Dynamic wah sounds provide variable effect based on picking strength
- "Humanizer" effect creates human voice-type vowel sounds
- Dedicated Bass input for processing bass guitar
- EXP Pedal mode allows wah control via optional expression pedal
- Tempo can be set for pedal control or at fixed rate via Manual mode
- BOSS 5-year warranty
A "Talking" Pedal
The AW-3 Dynamic Wah is the first compact wah pedal to incorporate human voice-type sounds through a new "Humanizer" Mode. Of course, you can also choose from standard up-and-down wah effects, plus a Tempo Mode and resonant synth-like Sharp Mode.
Endless Possibilities
Choose from both fixed and auto wah settings using the Manual control or pedal for tempo input. By connecting an optional expression pedal, the AW-3 can also be used for Pedal Wah effects. A dedicated Bass input permits direct processing of bass guitars.
- Nominal Input Level
- -20 dBu
- Input Impedance
- 1 M ohms
- Nominal Output Level
- -20 dBu
- Output Impedance
- 1 k ohms
- Recommended Load Impedance
- 10 k ohms or greater
- Residual Noise Level
- -92 dBu (IHF-A, Typ.)
- Connectors
- GUITAR IN Jack, BASS IN Jack, OUTPUT Jack, EXP/CTL Jack, AC Adaptor Jack (DC 9 V)
- Power Supply
- DC 9 V: Dry Battery 9 V type (6F22/9 V), AC Adaptor
- Current Draw
- 50 mA (DC 9 V)
- Accessories
- Dry Battery 9 V type (6F22/9 V)
- Options
- AC Adaptor (PSA-Series), Expression Pedal (Roland EV-5), Footswitch (FS-5U)
- Size and Weight ( incl. battery )
- Width
- 73 mm
- 2-7/8 inches
- Depth
- 129 mm
- 5-1/8 inches
- Height
- 59 mm
- 2-3/8 inches
- Weight
- 0.4 kg
- 0 lbs. 15 oz.
- * 0 dBu = 0.775 Vrms
- *The specifications are subject to change without notice.
