Current Model

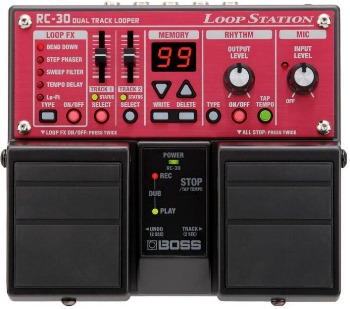

Boss RC-30 Loop Station Guitar Pedal
This instrument is discontinued
Other Options
£92.19
Boss CH-1 Super Chorus Guitar Pedal--Available Now--
£93.64
Boss CS-3 Compressor Sustain Pedal--Available Now--
£139.00
Boss RV-6 Reverb Pedal--Available Now--
| info | specs | videos |
|---|
Brand new from Boss, replacing the phenomenal RC20XL Loop Station pedal, comes the feature packed RC-30, with an internal memory capable of holding up to 3 hours of stereo recording and USB connectivity for exporting wav files to your PC.
Regardless of what instrument you play, the RC-30 is on hand to loop it - will even accomodate a microphone with a phantom powered XLR socket in the back. A must-have for many bedroom and gigging musicians, this multi-track looper has a twin pedal facility for snappy changeover from one track to the other.
The Boss RC-30 Loop Station Features:
- Twin Pedal multitrack looper with true stereo I/O
- Two synchronized stereo tracks with dedicated volume faders and track-select buttons
- Massive internal memory with up to three hours of stereo recording time
- 99 onboard memory phrases for storing loops
- Built-in effects for processing loops
- Multiple inputs: 1/4" A and B input jacks, stereo 1/8" mini AUX input jack, XLR input jack with phantom power
- USB 2.0 port allows you to connect to a PC and import/export WAV audio
- Rhythm guide with real drums
- Runs on batteries or optional AC power supply
- Nominal Input Level
- MIC IN: -40 dBu (variable)
INST IN: -20 dBu
AUX IN: -10 dBu - Input Impedance
- MIC IN: 4 k ohms
INST IN: 1 M ohm
AUX IN: 22 k ohms - Nominal Output Level
- -20 dBu
- Output Impedance
- 1 k ohm
- Recommended Load Impedance
- 10 k ohms or greater
- Recording/Playback
- Maximum Recording Time: Approximately 3 hours
Maximum Phrase Memory: 99 phrases
Number of tracks: 2
Data Format: WAV (44.1 kHz, 16-bit linear, stereo) - Rhythm Type
- Hi-Hat, Kick
- Effect Type
- BEND DOWN, STEP PHASER, SWEEP FILTER, TEMPO DELAY, Lo-Fi
- USB Interface
- Hi-Speed USB mass storage device class
- Controls
- REC/PLAY/OVERDUB pedal switch, STOP/TAP TEMPO pedal switch, MIC INPUT LEVEL knob, MEMORY DOWN button, MEMORY UP button, MEMORY WRITE button, MEMORY DELETE button, RHYTHM OUTPUT LEVEL knob, RHYTHM ON/OFF button, RHYTHM TYPE button, RHYTHM TAP TEMPO button, TRACK 1 slider, TRACK 1 SELECT button, TRACK 2 slider, TRACK 2 SELECT button, LOOP FX ON/OFF, LOOP FX TYPE button, PHANTOM switch
- Indicators
- POWER indicator, REC/PLAY (DUB) indicators, PEAK indicator, TRACK 1 STATUS indicator, TRACK 2 STATUS indicator, BEND DOWN indicator, STEP PHASER indicator, SWEEP FILTER indicator, TEMPO DELAY indicator, Lo-Fi indicator
- Display
- 7 segments, 2 characters (LED)
- Connectors
- MIC IN Jack: XLR type (balanced/phantom power: DC 48 V, 10 mA),
INST IN Jacks (L/MONO, R): 1/4" phone type,
AUX IN Jack: Stereo miniature phone type,
OUTPUT Jacks (L/MONO, R): 1/4" phone type,
FOOT SW Jack: 1/4" TRS phone type,
USB Connector,
DC IN Jack (DC 9 V) - Power Supply
- DC 9 V: Alkaline (AA, LR6) or Carbon-zinc battery (AA, R6) x 6,
AC Adaptor (PSA series: sold separately)
* Rechargeable Ni-MH batteries cannot be used. - Current Draw
- Maximum 195 mA (DC 9 V)
- Expected battery life under continuous use
- Alkaline battery (AA, LR6): Approx. 7.5 hours
Carbon-zinc battery (AA, R6): Approx. 1.5 hours
These figures will vary depending on the actual conditions of use. - Included Accessories
- Owners Manual, Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information"), Alkaline battery (AA, LR6) x 6
- Options (sold separately)
- AC Adaptor (PSA series), Footswitch (FS-5U, FS-6)
- Size and Weight
- Width
- 173 mm
6-13/16 inches - Depth
- 158 mm
6-1/4 inches - Height
- 57 mm
2-1/4 inches - Weight
- 1.2 kg
2 lbs. 11 oz. - In the interest of product improvement, the specifications and/or appearance of this unit are subject to change without prior notice.
