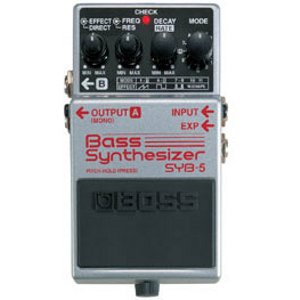

      Boss SYB-5 Bass Synth Pedal

      Other Options

      infospecsvideos

      A Fatter, Funkier Pedal for Bassists

      The Boss SYB-3 was the world's first bass synthesizer to be packed into a compact pedal, and it found favour with experimentalists and tone afficiandos alike. Today, the next-generation bass-synth pedal has arrived - the SYB-5. Utilizing the latest in DSP technology, the SYB-5 faithfully reproduces the fat and sharp sound characteristics of classic analog synthesizers.

      Enhanced Sound With the Latest DSP

      All of the 11 internal synth sounds have been markedly refined and enhanced to produce a fatter, more cutting sound than ever. The sounds are built on variations of three oscillator Waves (Saw, Square, Pulse) and filters that modulate according to the envelope and LFO changes you apply. You won't believe how much synth-bass beef can come from such a small pedal.

      Enhanced Playability Via External Control

      An external pedal input jack has been added to the SYB-5 for connecting an EV-5 Expression Pedal (sold separately), which allows you to control filter cutoff and LFO rate in real time with your foot. In Modes 1-9 you can use the SYB-5's onboard pedal to hold a note while playing a bass phrase over it. Time for a bass solo? You bet!

      The Boss SYB-5 Bass Synthesiser Pedal features:

      • 11 DSP variations of Saw, Square, and Pulse synth waves
      • Enhanced Wave Shape Mode provides sharper sounds
      • Hold notes with the onboard pedal and jam over the top
      Nominal Input Level
      -20 dBu
      Input Impedance
      1 M ohms
      Nominal Output Level
      -20 dBu
      Output Impedance
      1 k ohms
      Recommended Load Impedance
      10 k ohms or greater
      Residual Noise
      -96 dBu (IHF-A, Typ.); All knobs at center position
      Connectors
      Input jack, Output A (MONO) jack, Output B jack, EXP jack, AC adaptor jack (DC 9 V)
      Power Supply
      DC 9 V: Dry battery / 9 V type (6F22 (carbon), 6LR61 (alkaline)), AC Adaptor (PSA-series: optional)
      Current Draw
      50 mA (DC 9 V)
      Accessories
      Owner's Manual, Mode Label, Dry battery / 9 V type (6LR61)
      Options
      AC Adaptor (PSA-series), Expression Pedal (Roland EV-5)
      Size and Weight ( incl. battery )
      Width
      73 mm
      2-7/8 inches
      Depth
      129 mm
      5-1/8 inches
      Height
      59 mm
      2-3/8 inches
      Weight
      0.4 kg
      1 lbs.
      * 0 dBu=0.775 Vrms
      *The specifications are subject to change without notice.
