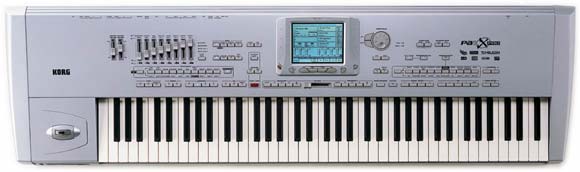

Korg PA1XPro |
| Model |
Korg PA1XPro |
| |
|
| Keyboard |
76 keys, with velocity and mono aftertouch. |
| Operating System |
KORG OPOS (Objective Portable Operating System) and RX (Real eXperience)
Technology. Multitasking, Load-While-Play feature. SSD (Solid State
Disk)-resident. Upgradable from floppy disk. |
| Display |
320 x 240 pixels, Color TouchView™ graphic touch screen |
| Help |
Hypertextual, contextual help system. Multilingual starting from OS Rel.
1.5. |
| Data storage |
1.44MB Floppy Disk Drive (MS-DOS0 compatible), Optional CD-RW (KORG
CDRW-1), Standard 2.5" ATA Hard Disk Drive Korg PA1X |
| Sound generation system |
KORG Hl - Hyper Integrated. |
| Polyphony |
62 voices, 62 oscillators. Filters with resonance. |
| Multitimbricity |
40 tracks (2 x 16 Sequencer, 4 Keyboard, 4 Pads) |
| Sounds |
Factory: >870, including a Stereo Piano and GM Level 2-compatible
Programs, 48 Drum Kits User: 256 Sounds, 64 Drum Kits. |
| Digital Drawbars |
8 Footages. Realtime control, using the Assignable Sliders |
| Sound Edit |
Qnboard full editing for Sounds and Drum Kits |
| Sampling |
Record, Edit, Time Slice (cornpatible with Korg, Wav, Aiff and Akai files)
|
| PCM RAM Memory |
16MB standard, expandable up to 32MB with an optional 16MB SIMM module |
| PCM ROM Expansion |
2 slots available, for up to 32MB of additional samples (up to 512 extra
Sounds and 128 Drum Kits) |
| Effects |
4 stereo digital rnulti-effect processors (with 89 effect types each, plus
Vocoder). Voice Processor by TC¿Helicon™ |
| Voice Processor |
Voice technology by TC Helicon. Four-parts harmonizer, Reverb, Delay,
Compressor, EQ. Pitch Correction and Voice Modeling available as options. |
| Realtime Tracks |
Four Keyboard tracks (Upper 1, 2, 3, Lower), 4 Pad tracks |
| Performances |
320 Realtime Performance locations. |
| Single Touch Settings (STS) |
Memorize Realtime tracks and Voice Processor settings. Up to 4 x 608
Styles. Up to 4 x each SongBook entry. |
| Styles |
More than 450 preloaded Styles, SSD-resident, freely reconfigurable. Up to
608 available Style locations. Eight Style tracks, 4 Single Touch Settings and
one Style Performance per-Style.Direct Disk (up to 96 Styles) and Direct Hard
Disk (up to 288 Styles) |
| Style controls |
4 Variations, 2 Fills, 2 Intros, 2 Endings, Intro 3/Count In, Fill 3/Break,
Synchro Start/Stop, Tap Tempo/Reset, Fade In/Out, Bass inversion, Manual Bass,
Tempo Lock, Memory, Accompaniment Volume, Accompaniment Mute, Drum Mapping,
Snare & Kick Designation |
| General controls |
Master Volume, Ensemble, Octave Transpose, Master Transpose, Split Point,
Style Change, Tracks Volume, Quarter Tone (pedal func-tion), Assignable
Sliders, Assignable Switches, Joystick, Dial. |
| Pads |
4 Assignable Pads + Stop button |
| Song Play |
Patented XDS Crossfade Dual Sequencer player - 2 Sequencers with separate
Select, Start/Stop, Pause, « (Rewind) and » (Fast For-ward) controls.
Balance control.Lyrics data can be displayed on-screen, or on an external video
monitor. Jukebox function. SMF |
| Sequencer |
Quick, Multitrack and Step Record functions. Full-featured sequencer. 16
tracks. Up to 200,000 events. SMF native format. |
| MP3 Player/Recorder |
MP3 Player/Recorder (optional). Requires a KORG EXBP-MP3 expansion board.
|
| CD Audio Player/Writer |
Optional. Requires a KORG CDRW-1 drive. Writing available starting from OS
Rel. 2.0. |
| SongBook |
Fully programmable music database, with automatic selection of Style Play
and Song Play modes. Different custom lists can be created. |
| Pedals |
Damper, Assignable (continuous, footswitch), EC5 |
| Realtime controllers |
Joystick (pitch+ modulation), Assignable Sliders, Assignable Switches, Pads
|
| MIDI |
2 x IN, 2 x OUT (toggle as THRU ports). Individual track assignement.
Auto-setup functions (MIDI Setup) |
| USB |
USB 1.1 connector (Type B/Slave) |
| Audio inputs |
2 x Line In, 1 x Mic In with Gain control |
| Audio Outputs |
2 Main (LefUMono, Right), 2 Sub (1, 2), 1 5/PDIF digital coaxial (mirroring
Main Outputs) |
| Headphone |
Front 6.3 mm 1/4" jack connection |
| Power Supply |
Universal 100 - 240V AC power supply |
| Power Consumption |
35 W |
| Dimensions |
W: 1330 mm/52.36", D: 302 mm/11.88", H: 136 mm/5.35 |
| Weight |
19.5 kg/44.99 Ibs |
| Accessories |
Users Manual, AC Power Cable, Music Stand, CDRW installation kit |
