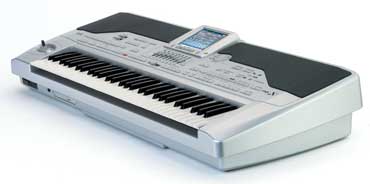

The PA1X a truly easy to use keyboard for
everyone
|
| Turn it on choose a rhythm and press the one touch setting-- the
sound quality is inspiring, youll be tapping your toes by the end of the intro
and youll be astounded by how good you sound when you start playing.
There are 4 one touch setting for each rhythm allowing you to enjoy the
instrument from the moment you unpack it. When your ready to learn more the
display will allow you to grasp its capabilities quickly
. |
The Sounds are the best-- Korg instruments have always been
good, in the past they were mostly appreciated by the professional/semi
professional players but this keyboard changes the mould. Now everyone will
want to use a Korg. The sounds are now better than CD quality (the sampling
rate has been increased above industry standard and what a difference this make
to what we hear)
|
| |
Record your performance-- The backing sequencer is designed to
let you capture all of the styles accompaniment tracks in one pass. The
sequencer is compatable with Standard Midi Files and Kareoke files, and
provides massive editing power. You can even edit the tone parameters of a
sound assigned to a track
|
Performance controls-- Eight assignable sliders, 4 assignable
switches, a joystick and 2 fixed function faders.
A great way to use these is by calling a preset organ performance, the eight
sliders are set as drawbars and the joystick switches between tremolo(fast) and
chorus(slow) leslie effects. Korgs flutes are fantastic, it combines for an
awesome organ setup.
|
Screen-- The large 240 x 320 colour touchscreen is easy to
understand and is intuitive. If youve never used one before you get used to
the idea instantly. The PA1XPro screen allows you to access all of the features
of the instrument quickly
|
Connections-- The back panel offers a damper pedal input, an
assignable pedal input and a connection to the optional EC5 multi function
footswitch. The USB port is essential for quick transfer of data from the
internal hard drive to a computer for further editing or archiving
Audio and Midi connections-- The PA1XPro has 2 pairs of audio outs
and 2 pairs of midi in/outs. There are 2 sets of audio in, that can be used for
sampling and providing input to the onboard Vocal Harmoniser, 1 set can be
switched to a balanced line input with a separate gain control. A coaxial S/P
DIF outut is included in the specifications making the PA1Xpro a truly
professional quality instrument
|
Quality Voicing-- The PA1X Pro has 62 notes of polyphony. There
are 760 sounds plus 516 more that you can create yourself. There are 48 preset
drumkits, and 128 programmable drumkits. Korg includes a very powerful effects
unit allowing 4 master effects and a set of Vocal effects provided by the
legendary TC Helicon.
|
Songbook-- You can select a song setup from a huge choice of
preset and user defined registrations. Calling up the correct style, tempo,
sounds and effects
|
Optional CDRW-- For less than £200 you can add the CDRW and
transfer your music directly to a CD to be played on any standard CD player.
Quality is perfect because there is no external noise to interfere with your
performance.
|
Powerful Sampling-- Korg has lots of experience in coupling
samplers to workstations and now they have incorporated it into an arranger
keyboard. It can read Wav files, AIFF Files and Akai samples. Sampled drum kits
can be sliced to create brand new drum kits, allowing you make your instrument
sound completely different from others.Sounds can then be filtered modified and
processed by the internal effects.
|
Rhythms created by the worlds best musicians-- The PA1XPro is
packed with over 350 musical styles created by brilliant musicians from all
over the world. Each style consists of 8 accompaniment parts. You can use the
bare minimum bass & drums or use all 8 parts to throw out a full big band
behind your sound. New styles can be added or played directly from floppy or
loaded onto the hard drive from a computer via the USB connection.
|
Korg PA1XPro - SPECIFICATIONS
| Model |
Korg PA1XPro |
| |
|
| Keyboard |
61 keys, with velocity and mono aftertouch. |
| Operating System |
KORG OPOS (Objective Portable Operating System) and RX (Real eXperience)
Technology. Multitasking, Load-While-Play feature. SSD (Solid State
Disk)-resident. Upgradable from floppy disk. |
| Display |
320 x 240 pixels, Color TouchView™ graphic touch screen |
| Help |
Hypertextual, contextual help system. Multilingual starting from OS Rel.
1.5. |
| Data storage |
1.44MB Floppy Disk Drive (MS-DOS0 compatible), Optional CD-RW (KORG
CDRW-1), Optional 2.5" ATA Hard Disk Drive Korg PA1X |
| Sound generation system |
KORG Hl - Hyper Integrated. |
| Polyphony |
62 voices, 62 oscillators. Filters with resonance. |
| Multitimbricity |
40 tracks (2 x 16 Sequencer, 4 Keyboard, 4 Pads) |
| Sounds |
Factory: >870, including a Stereo Piano and GM Level 2-compatible
Programs, 48 Drum Kits User: 256 Sounds, 64 Drum Kits. |
| Digital Drawbars |
8 Footages. Realtime control, using the Assignable Sliders |
| Sound Edit |
Qnboard full editing for Sounds and Drum Kits |
| Sampling |
Record, Edit, Time Slice (cornpatible with Korg, Wav, Aiff and Akai files)
|
| PCM RAM Memory |
16MB standard, expandable up to 32MB with an optional 16MB SIMM module |
| PCM ROM Expansion |
2 slots available, for up to 32MB of additional samples (up to 512 extra
Sounds and 128 Drum Kits) |
| Effects |
4 stereo digital rnulti-effect processors (with 89 effect types each, plus
Vocoder). Voice Processor by TC¿Helicon™ |
| Voice Processor |
Voice technology by TC Helicon. Four-parts harmonizer, Reverb, Delay,
Compressor, EQ. Pitch Correction and Voice Modeling available as options. |
| Realtime Tracks |
Four Keyboard tracks (Upper 1, 2, 3, Lower), 4 Pad tracks |
| Performances |
320 Realtime Performance locations. |
| Single Touch Settings (STS) |
Memorize Realtime tracks and Voice Processor settings. Up to 4 x 608
Styles. Up to 4 x each SongBook entry. |
| Styles |
More than 450 preloaded Styles, SSD-resident, freely reconfigurable. Up to
608 available Style locations. Eight Style tracks, 4 Single Touch Settings and
one Style Performance per-Style.Direct Disk (up to 96 Styles) and Direct Hard
Disk (up to 288 Styles) |
| Style controls |
4 Variations, 2 Fills, 2 Intros, 2 Endings, Intro 3/Count In, Fill 3/Break,
Synchro Start/Stop, Tap Tempo/Reset, Fade In/Out, Bass inversion, Manual Bass,
Tempo Lock, Memory, Accompaniment Volume, Accompaniment Mute, Drum Mapping,
Snare & Kick Designation |
| General controls |
Master Volume, Ensemble, Octave Transpose, Master Transpose, Split Point,
Style Change, Tracks Volume, Quarter Tone (pedal func-tion), Assignable
Sliders, Assignable Switches, Joystick, Dial. |
| Pads |
4 Assignable Pads + Stop button |
| Song Play |
Patented XDS Crossfade Dual Sequencer player - 2 Sequencers with separate
Select, Start/Stop, Pause, « (Rewind) and » (Fast For-ward) controls.
Balance control.Lyrics data can be displayed on-screen, or on an external video
monitor. Jukebox function. SMF |
| Sequencer |
Quick, Multitrack and Step Record functions. Full-featured sequencer. 16
tracks. Up to 200,000 events. SMF native format. |
| MP3 Player/Recorder |
MP3 Player/Recorder (optional). Requires a KORG EXBP-MP3 expansion board.
|
| CD Audio Player/Writer |
Optional. Requires a KORG CDRW-1 drive. Writing available starting from OS
Rel. 2.0. |
| SongBook |
Fully programmable music database, with automatic selection of Style Play
and Song Play modes. Different custom lists can be created. |
| Pedals |
Damper, Assignable (continuous, footswitch), EC5 |
| Realtime controllers |
Joystick (pitch+ modulation), Assignable Sliders, Assignable Switches, Pads
|
| MIDI |
2 x IN, 2 x OUT (toggle as THRU ports). Individual track assignement.
Auto-setup functions (MIDI Setup) |
| USB |
USB 1.1 connector (Type B/Slave) |
| Audio inputs |
2 x Line In, 1 x Mic In with Gain control |
| Audio Outputs |
2 Main (LefUMono, Right), 2 Sub (1, 2), 1 5/PDIF digital coaxial (mirroring
Main Outputs) |
| Headphone |
Front 6.3 mm 1/4" jack connection |
| Amplification |
Biamped 2 x 35 Watt (Woofer) + 2 x 12 Watt Speakers |
| Speakers |
4 Speakers (13 cm Woofer + Dome Tweeter), 2-way, Bass Reflex Box |
| Power Supply |
Universal 100 - 240V AC power supply |
| Power Consumption |
65 W |
| Dimensions |
W: 1123 mm/44.21", D: 428 mm/16.85", H: 189 mm /7.44 |
| Weight |
21 kg/46.3 Ibs |
| Accessories |
Users Manual, AC Power Cable, Music Stand, CDRW installation kit |
|
