Yamaha MG10X CV 10 Channel Mixing Desk With Effects - Refurbished
We do not have this model available as ex demo / refurb at the moment
Please feel free to call us so we can advise if we are expecting a shipment
New version is here - Click
Other Options
| info | specs |
|---|

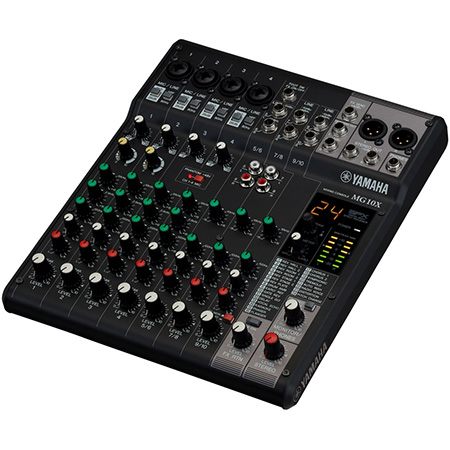

Yamaha MG10X CV - High Quality Audio Mixer With Effects Processing - Refurbished
Our refurbished MG10X CV desk comes with full manufacture warranty and may of been used for demo or have some marks but generally in as new condition and boxed. Refurbished products are checked by Yamaha before sending to us and by us on arrival here to ensure products meet are strict standards and for your peace of mind. If you have an specific questions about the unit please do not hesitate to email us on sales@achamilton.co.uk and we are happy to assist with details/ images etc.
Yamaha Mg10X CV Main Product Details
The MG10X CV comes without the USB for those who do not need to stream audio and in turn offers a more affordable price solution for mixing with the added bonus of having effects for vocals etc. It still maintains the superb SPX effects processing, build quality and audio quality Yamaha are renowned for. This makes it an ideal mixer for live performers wanting an affordable compact mixer, with high quality audio and effects at a great price.
Yamaha MG10X CV Mixer - Main Features
- D-Pre Discrete Class-A Mic Preamps for high quality mic audio processing
- MG01 Custom made op-amps with redesigned circuitry focused on high quality audio processing
- Switchable Phantom power
- Pad switches per channel to help prevent mic clipping
- 1-Knob Compressors offering easy to operate control of sound dynamics
- 3 Band-EQ on all mono channels
- Single stereo BUS control for channel grouping
- Aux send for external effects processing or monitoring
- High-quality Neutrik balanced XLR connectors on mono microphone/line channels
- XLR and jack balanced main outputs
- Superb SPX effects processing built in - add reverb to vocals or guitars for example
- Metal chassis built to last - road ready
Yamaha MG10X CV Mixer Official Specifications
- On-Board Processors: SPX algorithm: 24 programs, PARAMETER control:1, FOOT SW:1 (FX RTN CH on/off)
- Phantom Power: Yes +48v Switchable
- Input Channels:
Mono[MIC/LINE] x4
Stereo[LINE] x3 - Output Channels:
STEREO OUT x2
MONITOR OUT x1
PHONES x1
AUX SEND - BUS: Stereo: 1, AUX[FX]: 1
- Input Channel Features:
PAD: 26 dB (Mono)
HPF: 80 Hz, 12 dB/oct (Mono)
COMP: 1-knob compressor Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB, Attack time: approx. 25 msec, Release time: approx. 300 msec
EQ HIGH: Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving
EQ MID: Gain: +15 dB/-15 dB, Frequency: 2.5kHz peaking
EQ LOW: Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving
PEAK LED: LED turns on when post EQ signal reaches 3 dB below clipping
LEVEL METER: 2 x 7 -segment LED meter [PEAK, +10, +6, 0, -6, -10, -20 dB] - Dimensions: (w) 244 mm (9.6") x (h) 71 mm (2.8") x (d) 294 mm (11.6")
- Weight: 2.1 kg (4.63 lbs.)
