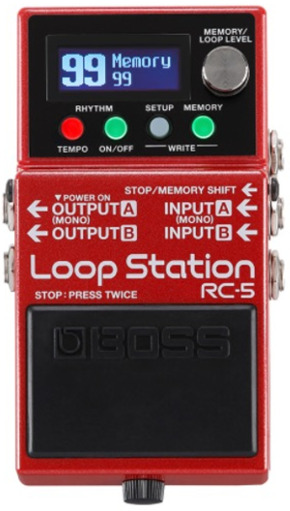

Boss RC-5 Loop Station Pedal
Step up to the RC-5 and prime your pedalboard with maximum looping range. Capture sound with premium 32-bit quality, navigate parameters and monitor loop status with the backlit LCD, and tap into expanded operation via the control jack and TRS MIDI I/O. And with over 50 rhythms, 13 hours of stereo recording, 99 phrase memories, and more, the compact RC-5 puts a deep well of musical power at your feet.
Main Features:
Boss RC-5 Loop Station Pedal Specification
- Sampling Frequency: 44.1 kHz
- AD/DA Conversion: 32 bits
- Processing: 32-bit floating point
- Number of Track: 1
- Data Format: WAV (44.1 kHz, 32-bit float, stereo)
- Maximum Recording Time: Approx. 1.5 hours (1 track), Approx.13 hours (total of All memories)
- Rhythm Type: 57 Patterns x 2 Variations
- Rhythm Kit: 7 types
- Effect Reverb (only for rhythm part)
- Memory: 99
- Nominal Input Level: INPUT A/MONO, B: -20 dBu
- Input Impedance: INPUT A/MONO, B: 1 M ohm
- Nominal Output Level: OUTPUT A/MONO, B:-20 dBu
- Output Impedance: OUTPUT A/MONO, B: 1 k ohm
- Recommended Load Impedance: OUTPUT A/MONO, B: 10 k ohms or greater
- Bypass: Buffered bypass
- Controls: MEMORY/LOOP LEVEL knob, MEMORY button, SETUP button, RHYTHM ON/OFF button, RHYTHM TEMPO button, Pedal switch
- Display: Graphic LCD (96 x 32 dots, RGB backlit LCD)
- INPUT A/MONO, B jacks: 1/4-inch phone type
- OUTPUT A/MONO, B jacks: 1/4-inch phone type
- STOP/MEMORY jack: 1/4-inch TRS phone type
- USB port: USB B type
- MIDI (IN, OUT) jacks: stereo miniature type
- Power: DC IN jack
- Power Supply: Alkaline battery (9 V, 6LR61 or 6LF22)
- AC adaptor: (PSA series: sold separately)
- Current Draw: 170 mA
- Expected battery life under continuous use: Alkaline: Approx. 2 hours (These figures will vary depending on the actual conditions of use.)
- Footswitch (Sold Separately): FS-5U
- Dual Footswitch (Sold Separately): FS-6, FS-7
- Expression Pedal (Sold Separately): FV-500H, FV-500L, EV-30, Roland EV-5
- TRS/MIDI connecting cable (Sold Separately): BMIDI-5-35
- Width: 73 mm 2-7/8 inches
- Depth: 129 mm 5-1/8 inches
- Height: 56 mm 2-1/4 inches
- Weight (including battery): 450 g 1 lb
