Current Model

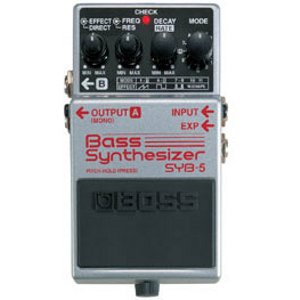

Boss SYB-5 Bass Synth Pedal
This instrument is discontinued
Other Options
£92.19
Boss CH-1 Super Chorus Guitar Pedal--Available Now--
£93.64
Boss CS-3 Compressor Sustain Pedal--Available Now--
£86.12
Boss NS-2 Noise Suppressor Guitar Pedal--Available Now--
£139.00
Boss RV-6 Reverb Pedal--Available Now--
£79.632
Boss TU-3 Chromatic Tuner Guitar Pedal--Available Now--
| info | specs | videos |
|---|
A Fatter, Funkier Pedal for Bassists
The Boss SYB-3 was the world's first bass synthesizer to be packed into a compact pedal, and it found favour with experimentalists and tone afficiandos alike. Today, the next-generation bass-synth pedal has arrived - the SYB-5. Utilizing the latest in DSP technology, the SYB-5 faithfully reproduces the fat and sharp sound characteristics of classic analog synthesizers.
Enhanced Sound With the Latest DSP
All of the 11 internal synth sounds have been markedly refined and enhanced to produce a fatter, more cutting sound than ever. The sounds are built on variations of three oscillator Waves (Saw, Square, Pulse) and filters that modulate according to the envelope and LFO changes you apply. You won't believe how much synth-bass beef can come from such a small pedal.
Enhanced Playability Via External Control
An external pedal input jack has been added to the SYB-5 for connecting an EV-5 Expression Pedal (sold separately), which allows you to control filter cutoff and LFO rate in real time with your foot. In Modes 1-9 you can use the SYB-5's onboard pedal to hold a note while playing a bass phrase over it. Time for a bass solo? You bet!
The Boss SYB-5 Bass Synthesiser Pedal features:
- 11 DSP variations of Saw, Square, and Pulse synth waves
- Enhanced Wave Shape Mode provides sharper sounds
- Hold notes with the onboard pedal and jam over the top
- Nominal Input Level
- -20 dBu
- Input Impedance
- 1 M ohms
- Nominal Output Level
- -20 dBu
- Output Impedance
- 1 k ohms
- Recommended Load Impedance
- 10 k ohms or greater
- Residual Noise
- -96 dBu (IHF-A, Typ.); All knobs at center position
- Connectors
- Input jack, Output A (MONO) jack, Output B jack, EXP jack, AC adaptor jack (DC 9 V)
- Power Supply
- DC 9 V: Dry battery / 9 V type (6F22 (carbon), 6LR61 (alkaline)), AC Adaptor (PSA-series: optional)
- Current Draw
- 50 mA (DC 9 V)
- Accessories
- Owner's Manual, Mode Label, Dry battery / 9 V type (6LR61)
- Options
- AC Adaptor (PSA-series), Expression Pedal (Roland EV-5)
- Size and Weight ( incl. battery )
- Width
- 73 mm
- 2-7/8 inches
- Depth
- 129 mm
- 5-1/8 inches
- Height
- 59 mm
- 2-3/8 inches
- Weight
- 0.4 kg
- 1 lbs.
- * 0 dBu=0.775 Vrms
- *The specifications are subject to change without notice.
