    Current Model

      Korg Pa5X launched - now available

      Korg PA4X 76 OR Oriental - Used
      This instrument is discontinued

      Other Options


      Yamaha PSR-SX900

      --Available Now--


      Korg PA4X Oriental

      --Available Now--

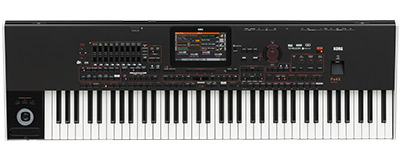

      Korg PA4X 76 OR Oriental Professional Arranger Keyboard - Used

      Fantastic condition in mint condition includes original box and everything with a brand new model. INCLUDES 12 Month Warranty

      The Korg PA4X 76 Oriental is a 76 note professional arranger offering only the highest quality sounds, styles and tunings that are essential for a whole range musical genres from western through to Oriental styles. No matter whether you want to play Arabic, Persian, Turkish or western style music, the oriental is full of specially sampled sounds and styles to ensure professional results.

      Incredible Sound: EDS-X/ DNC Technology

      Korg set a new standard with the EDS-X and DNC sound technologies which combined offer up a pallet of extraordinary sounds. There are over 1650 sounds to choose from selected to cover all genres of music. More importantly the sound detail brings true realism to your performance. Acoustic instruments from piano and guitars right through to electronic and EDM sounds are covered. The PA4X Oriental has a specially chosen selection of oriental sounds such as Kanun, Oud, Strings a whole range of Arabic drum kits and much more.

      DNC (Digital Nuance Control) adds natural expressions and articulations only the original instruments could originally produce. Violins can be played with trills, saxophones can have glissando runs, guitars can have harmonics and all triggered at the touch of a button. DNC brings a new level of reality to your playing without players having to learn a new technique.

      The Pa4X-76 relies on Korg`s advanced EDS-X (Enhanced Definition Synthesis-eXpanded) sound engine, and comes complete with over 1,500* ready-to-play sounds. Included is a new multi-layer stereo grand piano (with damper and body resonance), plus electric pianos from the acclaimed KORG SV-1 Stage Piano. In addition, the Pa4X has been equipped with new wind instruments, strings, basses even acoustic and electric guitars. Sounds have been painstakingly captured using state-of-the-art methods that allow the finest of details to be accurately reproduced. The digital drawbar organ includes key on/off noises, leakage, and Rotary Speaker emulation.

      Korg Osimo

      The new Osimo software is a fantastic add-on for your Pa4X. Osimo has been developed by the specialists at Korg to provide a simple way to access great song settings. They have created a range of set lists with famous name settings for popular songs alongside many other bonus settings so you can instantly select and play. This magnificent software is provided free by us with your Pa4X purchase.

      We also have an instruction sheet available to make using your new Osimo software very easy. View the installation guide here

      PA4X V3 Upgrade

      The new Pa4X V3 Software (Korg OS NEXT) refreshes the PA4X keyboard and enhances the capabilities of the instrument. Best of all its a completely free upgrade! Pa4X NEXT includes a host of new features. These include:

      • New Dark Glimmering user interface - designed to make it cleaner and easier to view the screen
      • New direct reading of samples from USB making up to 1.5Gb of sample space available (uncompressed)
      • New copying of keyboard sets between styles and songbook entries
      • New drawbar organ screen to enhance ease of use and access
      • New record screen - consolidates all different record options in one place independent of current play mode
      • New quick record screen more represents the standard play screen to make it easier to use
      • Plus a whole bunch of other new stuff such as smoother operation, bug fixes, locking of keyboard sets and more!

      Users may download Pa4x OS V3 at the official Korg website. Our customers benefit from full technical support and help with installation and upgrade of the firmware.

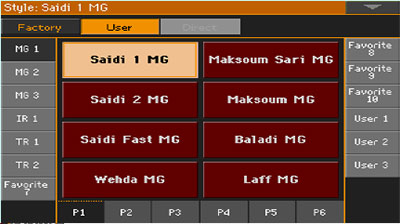

      Styles For Everyone

      Even though the PA4X Oriental is equipped with over 190 specially developed Oriental/Arabic styles, it is also packed with a huge choice of world class styles we all know and love from pop and rock through to movie and show and everything in-between. there is over 650 styles to choose from in this keyboard and will keep you entertained for many years to come.

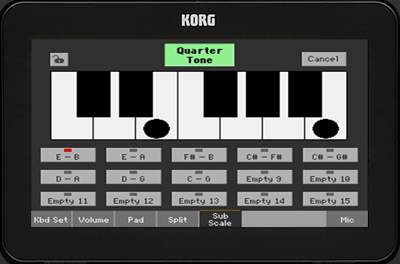

      Special Quarter Tone Custom Memory

      Oriental music uses very different tuning to standard western music and all of the tunings can be customised and saved for instant recall in to 15 memory banks. Each individual note of the scale can be tuned to your liking and with a 15 memory capacity it is quick and easy to change scaling for any genre of music.

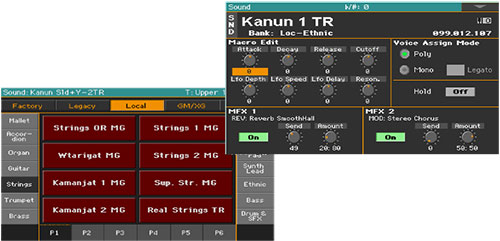

      Easy To Use: Colour Touch Screen

      Oriental models feature a colour, tilting, 7inch capacitive touch screen display. The layout is designed for clarity and quick navigation so your performance can flow and editing, creating and customising virtually all aspects of the instrument is done clearly and easily. The screen can also lock at differing angles to suit your playing position or lighting.

      MIDI File To Style Conversion

      Many keyboards can play styles, and many keyboards can play MIDI files, but the PA4X is capable of converting a MIDI file into a style! So instead of the whole song just playing through, you can take control and play the perfect style for your performance in any way you want to play it, instead of being fixed by the linear flow of the song playback. It is easy to do, quick and the results are great. It also allows you to completely customise the sounds, effects and balances of the style just like any other style so you can bring out the best in your performance.

      Powerful Effects Processing

      Having high quality sounds and styles is great but of the effects are weak, then the results will be weak. The PA4X Oriental is equipped with a huge selection of detailed, top notch effects processing to bring out the best in your music. The effects processor offers 148 different effects types which can all be changed to your liking. The styles can have up to 4 insert effects and 3 master effects running simultaneously whilst the sound parts can have 1 insert effect and 2 master effects simultaneously.

      Double MP3 and MIDI File Player/Recorder

      Korg PA4X Oriental can record and playback MP3 or MIDI files of your performance. When using the MP3 recorder it is even possible to record your vocal at the same time as your performance and create a high quality recording of your song. Recording a standard MIDI file is easy and up to 16 tracks can be recorded/ layered to create your musical masterpiece. As with all MIDI data, the MIDI file can be edited in detail right down to individual note level or for simply balancing, and mastering with effects - the PA4X can do it all.

      Being a double player, you can play one song whilst preparing the next for playback. A cross-fader situated right in the middle allows you to cross-fade between the 2 files, very much DJ style!

      Vocal Processing With TC Helicon

      Tc Helicon are renowned throughout the globe for their high quality vocal processors and offering superb vocal harmony features. Korg have worked with TC Helicon and built-in such a quality vocal processing unit. All aspects of the harmony can be modified from Reverb and Delays through to the tuning of the individual harmonic voices that are applied with your singing.

      Data Storage

      The Korg PA4X Oriental has a built in storage device and USB slot with the option for an additional HD. The 76 note model comes with a HD as standard. Both models offer the option to insert a micro SD card slot for permanent storage in the instrument for all your data. Either way, even without the HD, the 61 note Oriental PA4X has a huge amount of space available whether it be to the internal storage memory or external USB. You will not have to worry about storing and saving all your work.

      • Pa4X ORIENTAL 61: 61 keys (C2 - C7)
      • Pa4X ORIENTAL 76: 76 keys (E1 - G7)
      • Semi-weighted keys with Velocity and Aftertouch
      • Upgradable Operating System
      • Multitasking, load while play feature
      Sound Generator
    • EDS-X (Enhanced Definition Synthesis-eXpanded)
    • Filters with Resonance - Three band EQ for each track
    • Polyphony
      • 128 Voices, 128 Oscillators
      • Accompaniment/Song: 4 Insert Effects; 3 Master Effects (148 Types)
      • Keyboard Tracks: 1 Insert Effect; 2 Master Effects (148 Types)
      • Final Mastering Effects: Waves Audio Ltd.
      • MAXX Suite:Includes MaxxEQ, MaxxBass, MaxxTreble, MaxxStereo, MaxxVolume
      Voice Processor Technology by TC Helicon
      • Four-part Harmonizer, Double, Mod, Reverb, Delay, Filter, HardTune, Pitch Correction;
      • plus Compressor, EQ, Gate (Adaptive Mic Setting on the Mic input)
      Sounds / Drumkits
      • Factory: More than 1,650 Sounds including a multi-layer Stereo Piano with damper/body resonance, GM/XG sound sets and more than 140 Drumkits including Ambient Drums
      • User Area: 512 Sounds, 128 Drumkits
      • Digital Drawbars: 9 Footages, Percussion, Key On/Off, Leakage (Effect section includes rotary speaker)
      • Defined Nuance Control (DNC) Technology
      • Natural Ambience Drums Sound
      • Full Sounds/Drumkits editing capability
      • User PCM RAM Memory: 400 MB
      • Load KORG, Wav, AIFF and SoundFont formats
      • Save KORG, Wav and AIFF formats
      • Full Edit, Time Slice, Sampling feature
      • More than 650 preloaded Styles, freely reconfigurable
      • 1,872 locations including the User banks and Direct function
      • Eight Style tracks, 4 Keyboard Sets, 4 Pads and one Style Setting per Style
      • Guitar Mode 2, Parallel and Fixed NTT
      • Style Record with Step Record, Track and Event Edit functions
      • Style controls: 3 Intros, 4 Variations, 4 Fills, Break, 3 Endings, Synchro Start, Synchro Stop, Tap Tempo/Reset, Bass Inversion, Auto Fill, Manual Bass, Memory, Accompaniment Mute, Drum Mapping, Snare & Kick Designation, Style to KBD Set Mode
      Chord Sequencer
    • Chord Sequence recorder in Style Play mode
    • Chord Sequence save in Style and SongBook entries
    • Edit functions: delete, copy from Style/SongBook, import/export from/to SMF
    • Keyboard Set Library
      • Memorize keyboard tracks settings
      • 1,584 locations including the User banks and Direct function
      • "My Setting" special Keyboard Set
      Song Play
      • Patented XDS Crossfade Dual Sequencer Player with X-Fader Balance control
      • Supported formats: MID, KAR, MP3 + lyrics, MP3+G
      • 2 Players with separate Select, Start/Stop, Home, Rewind and Fast Forward controls
      • Lyrics, Score, and Chord data can be displayed on screen, or on external video monitor
      • Markers with Add, Delete, Edit and Loop functions
      • Jukebox function
      MP3 Player / Recorder
      • Double MP3 Player and MP3 Recorder
      • Transpose (+6/-5 semitones)
      • Tempo change (+/-30%)
      • Advanced Vocal Remover
      • Record MP3 files including Styles, SMF, MP3, Keyboard Tracks, Pads, Microphone and Effects
      • Quick Record (Backing Sequence), Multitrack and Step Record functions
      • Full-featured sequencer, 16 tracks, Up to 200,000 events, SMF native format
      • Fully programmable music database, based on Styles, SMF, Karaoke, MP3 with automatic selection of Style Play and Song Play modes
      • User-definable Set Lists with layout button association
      • Filtering and Ordering options
      • "i-Series" models: Styles
      • "Pa-Series" models: Style, Performance, Program/Sound, Song, SongBook, Pad
      • 4 Assignable Pads + Stop Button - Pad Record function
      General Controls
      • Master Volume; Fade In/Out; Keyboard-Acc/Song Balance Volume; Ensemble; Octave Transpose; Master Transpose; Quarter Tone and Arabic Scale memorized inside Keyboard Sets; Joystick (pitch + modulation); Ribbon; Mic Volume; Harmony/Double; Delay/Reverb; Mic Preset; Mic On/Off; Harmony On/Off; Double On/Off; 8 Assignable Sliders; Slider Mode; MP3 Volume; 3 Assignable Switches; Tempo +/-; Tempo Lock; Metronome On/Off; Dial; Up/+; Down/-; Search; Shift; Chord Scan (Lower, Upper); Split; Keyboard Tracks Sound Select and On/Off; Record
      Control Inputs
      • Damper pedal (support half-pedaling with optional DS-1H pedal)
      • Assignable pedal/switch
      • EC5 multiswitch pedal
      Mic/Line Inputs
      • Mic: Combo XLR balanced with Gain control and Phantom Power
      • Line 1: Left/Right Jack (1/4") Line Input, balanced
      • Line 2: Stereo Mini-jack (1/8") Line Input, unbalanced
      • Audio Output: Left/Right, Out 1, Out 2; (1/4" TRS) balanced
      • Headphone Output x 1 (Front panel)
      • Video Out x 1, RCA type
      • IN, OUT, THRU standard MIDI connectors
      • USB to MIDI using the USB Device port
      • 8 user definable MIDI Setups
      • Type A (Host) x 2 (Front/Rear)
      • Type B (Device) x 1 (Rear)
      • 2.0 Hi-Speed connections
      • Hard Drive: Pa4X ORIENTAL 76 (Standard) / Pa4X ORIENTAL 61 (optional - Hard Disk Installation Kit required)
      • Micro SD card: (Card not included) - Rear panel slot with plastic cover
      • USB Flash Drive: (Drive not included) - 1 Front panel port - 1 Rear panel port
      • 7" Wide capacitive color TouchView TFT display
      AC - Power Consumption
      • 100-240 Volts, 50/60 Hz
      • 0.5 Watt in standby / 16 Watt normal / 38 Watt with PaAS installed
      Dimensions (W x D x H) without music stand
      • Pa4X ORIENTAL-76: 1,192 x 364.4 x 125.56 mm / 46.93" x 14.35" x 4.94" with display fully lowered
      • Pa4X ORIENTAL-61: 980 x 364.4 x 125.56 mm / 38.58" x 14.35" x 4.94" with display fully lowered
      • Pa4X ORIENTAL-76: 16.3 kg / 35.93 lbs
      • Pa4X ORIENTAL-61: 13.9 kg / 30.64 lbs
      Included Items
      • AC Power Cable, Music Stand
      • DVD-ROM: includes Owner's manuals in pdf format, Video Manual, and KORG USB-MIDI Driver
      • PaAS Amplification System
      • ST-SV1 Keyboard Stand
      • HDIK-3 Hard Disk Installation Kit (for 61 keys only)
      • EC-5 Multiswitch Pedal
      • EXP-2 Foot Controller
      • XVP-20 Vol/Exp Pedal
      • XVP-10 Expression/Volume Pedal
