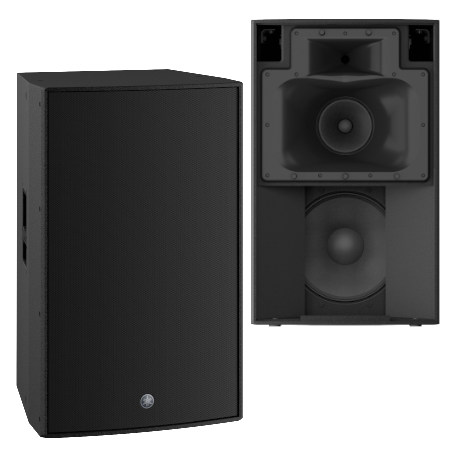

Yamaha DZR315 3 Way Powered Speaker - Ex-Display - Single Speaker

Our ex-display DZR315 speaker comes in excellent condition with manufacture warranty. It may or may not have original box but will be supplied with a power cable and ready to go, tried and tested by our experts and Yamaha. Feel free to ask or more details.

Not the smallest of speakers, but some of the best quality and most powerful single speakers on the market, the Yamaha DZR315 comes in a 3 way configuration with a 15" Low frequency driver combined with an 8" mid and 2" high frequency driver, offering incredible clarity, power and bass depth. Each speaker comprises of high level speaker protection and a 2000w power class-D power amplifier. They are to for the faint hearted - if you are looking for a world class and powerful speaker then look no further.

Weighing in at over 41Kg, they are not designed to go on speaker mounts but are designed for stage mounting or specialist mounting.

Yamaha DZR315 Main Features

• 3-way powered loudspeaker with a 2" HF, an 8" MF and a 15" LF
• Maximum 143dB SPL and 31Hz-20kHz frequency range is ideal for FOH main PA
• High power 2000W Class-D amplifier module
• 96kHz DSP and FIR filter for true high-resolution sound with super low latency
• Features Advanced FIR-X tuning, the combination of FIR filtering and correct EQ for minimizing phase distortion
• Access a variety of DSP functions and load presets, or make precise adjustments to PEQ, delay and routing etc. via the
• intuitive LCD display
• D-Contour and highly reliable protection circuits
• Lightweight yet very durable plywood cabinet with premium grade Polyurea coating

Advanced FIR-X Tuning

96kHz DSP processors help focus the considerable power output of the DZR into truly high-resolution sound with super-low latency. Yamaha's newly developed Advanced FIR-X tuning improves significantly on our proprietary FIR-X tuning technology which utilizes linear phase FIR filters for the crossover network and correct EQ. Using FIR filters, we are able to realize very smooth frequency response for stunning clarity and sound imaging without phase distortion. Accurate EQ filtering is also provided for pinpoint adjustment to realize ideal clarity and best-in-class SPL without signal degradation.

On-Bord LCD Display

An onboard LCD screen allows users to easily navigate the variety of DSP functions, load presets, and make precise adjustments to PEQ, delay, and routing. Store up to 8 user presets to save your own parameter adjustments, or use the optimized dedicated factory presets for using DZR and DXS XLF Series in combination. Users can easily transfer saved settings to a USB flash drive.

D-Contour

D-CONTOUR is an intelligent multi-band compressor that ensures your DZR's sound stays consistent and clear no matter how hard you drive them. By constantly monitoring the output of multiple frequency bands and applying the optimum EQ adjustments for each, even the highest output levels maintain outstanding clarity and musicality.

A perfect complement to the DZR's versatile cabinet design, D-CONTOUR provides two different settings, FOH/MAIN or MONITOR mode, offering more detailed tuning of your sound relative to your PA's configuration. FOH/MAIN mode boosts the lower frequencies to compensate for low end that is typically missing when speakers are used in suspended applications or mounted on a speaker stand. MONITOR mode is optimized for floor monitoring application by taming down problematic low frequencies that can be enhanced by floor reflection, and smoothing a wide range of frequencies to deliver the clarity professionals demand from their stage monitors. Both of these presets were perfected by performing countless listening tests with skilled sound engineers to ensure consistent sound with low distortion at any output level.

DSP Protection

One of the advantages of active loudspeakers is that the combination of transducers and amplifiers can be perfectly matched and optimized for the best possible performance.Employing many of the same protection functions used in Yamaha's high-end professional power amplifiers, their state-of-the-art DSP consistently monitors the status of the power supply, power amplifiers, transducers, and signal levels, to protect each component in order to maintain optimum performance while extending component life and usability.

Powerful 2000w Class-D Amplfication

The all new, highly efficient Class-D amplification module produces best-in-class 2000W of power and an impressive 143dB SPL. All the amplifiers were selected and optimized to match the full-range DZR's high, mid (only for DZR315), and low frequency transducers, while separate, customized amps were developed for the DXS XLF subwoofers as well.

Custom Designed Speakers

High Frequency Driver

The HF transducers are comprised of a 2" voice coil and 1˝ throat compression driver, a titanium diaphragm and Neodymium magnet housed in a durable heat resistant aluminium cast frame.

Mid Frequency Driver

The MF transducer for the 3-way DZR315 models feature an 8" Cone, 1.5" voice coil providing better efficiency and super-low distortion for the low-mid frequencies, and contributing to the extraordinarily high 143dB maximum SPL and the clarity of the sound.

Low Frequency
