Current Model

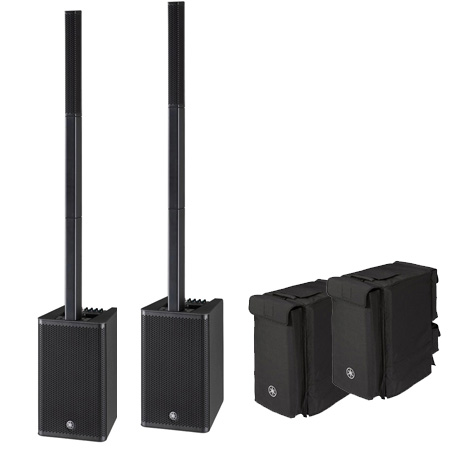

Yamaha Stagepas 1K PA System - Stereo Pair
This instrument is discontinued
Bundle currently not available. However Bundle componants may be in stock
Other Options
| info | specs | videos |
|---|
Our Yamaha Stagepas 1K stereo bundle allows you to get a true stereo sound and top quality audio in a simple and portable setup. Each Stagepas 1K has a 1000w amplifier combined with a 4 channel digital mixer with effects and built-in bluetooth for wireless audio and control of the mixer. The speakers consist of a 12 inch subwoofer and 10x 1.5" line array speakers for incredible detail and sound projection. The array speaker section is also height adjustable using the include spacers for ensuring the best sound in any situation.
Connecting Stagepas 1K In Stereo
Each model has a dedicated 'Link Out' and 'Link In' 3 pin connector on the back. To set-up for stereo usage you simply connect the Link Out of the Left speaker to the Link in of the right speaker using a standard 3 pin XLR cable. When connected you get to hear any of the mono inputs to the left speaker mixer through both speakers simultaneously, and, the stereo input from the left speaker will be split to left and right for true stereo sound!
If you wish to have more inputs then you can double it straight away. Both speakers can be used as a 2 speaker mono system, together whilst being able to use all 3 mono inputs on both Stagepas 1K units. By connecting both Link Out to each others Link In connections you can use it as a 2 speaker mono system straight away.
Stagepas 1K Individual Technical Specification
Mixing capability
- Mixing channels: 4 (3 Mono + 1 Stereo)
- Input channel functions: Hi-Z (CH2/3), 1-Knob EQ (CH1-3/ Stereo)
- Output channel functions: MODE - Speech/ Music / Club
- Inputs: 3 Mono Mic/Line + 1 Stereo line/ 2 Mono line
- Outputs: 1 Link Out, 1 Monitor Out
- Bluetooth: Bluetooth Ver.5.0, A2DP (SBC, AAC)
- Control and others: Reverb foot switch, Stagepas Editor
- On-board processors: SPX digital reverb (4 Programs with parameter control)
General specifications
- Speaker type: Powered subwoofer with a line array speaker
- Frequency range (-10dB): 37 Hz - 20 kHz
- Nominal coverage: 30 Degrees Vertical, 170 Degrees Horizontal
- Components: LF: 12" powered subwoofer / HF: Line array speaker 10x 1.5" cones
- Power rating: 1000w Dynamic power (810w LF + 190w HF) - 119 db SPL
- Power consumption: 25w idle, 85w 1/8 power
- Accessories Included: Power cord, cover
- Options: Yamaha DL-SP1K dedicated dolly, foot-switch for reverb
- Dimensions: (W x H x D): System: 334 x 2,000 x 418 mm (maximum), Line array speaker: 67 x 582 x 86 mm, Powered subwoofer: 334 x 550 x 418 mm, Spacer: 67 x 555 x 86 mm (each)
- Weight: System: 23.0kg (maximum), Line array speaker: 1.8kg, Powered subwoofer: 20.0kg, Spacer: 0.6kg (each)
