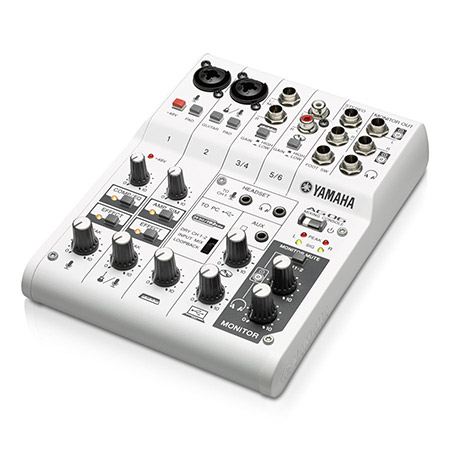

Yamaha AG06 Mixing Console And Audio Interface

The Yamaha AG06 is a high quality, compact audio interface with mixing features, an array of different inputs and 2In/ 2Out audio interfacing on a single USB cable. The unit is packed full of features such as D-Pre studio quality mic pre-amp, effects, 24Bit/192kHz recording and playback, loopback feature for live recording or podcasting and much more.

High Quality Audio

As usual Yamaha have opted for only the best quality. The AG06 makes use of D-Pre mic pre-amps for only the cleanest and most accurate sound, whilst the high quality components process at 24Bit/192kHz offering super clear 2 track audio transfer for recording to your DAW.

Selection Of Different Inputs

There are a large number of inputs available on the AG06. Its mixing console layout makes it great as a mixer for live use but ideal for multiple inputs as a recording interface. Inputs include:

• 2x TRS inputs 1 with Mic D-Pre and Phantom power, 1 has Hi-Z for guitar or mic input
• Input 3/4 2x 1/4" Jacks for stereo instruments such as keyboard
• Input 5/6 2x RCA for stereo devices such as MP3 players etc
• Aux input stereo mini jack for smartphones etc.
• Headset input - ideal for podcasting and live broadcast

DSP Effects Processing

Effects are an essential part of getting just the right sound for recording or live broadcasting. The AG06 uses a powerful 1-Touch DSP system with high quality Amp Sim, Compression and ambient reverb effects. AG DSP Controller is software for Mac or PC which gives you additional control of 1-TOUCH DSP parameters such as COMP, EQ, HPF, reverb, and the AMP SIM.

Class Compliant

Class compliant means the AG06 can talk with Apple iPad devices (2nd Gen or newer) and work in harmony with them. With the use of the Apple USB Camera Connection Kit you can easily connect up to an iPad to make use of apps such as recording apps.
