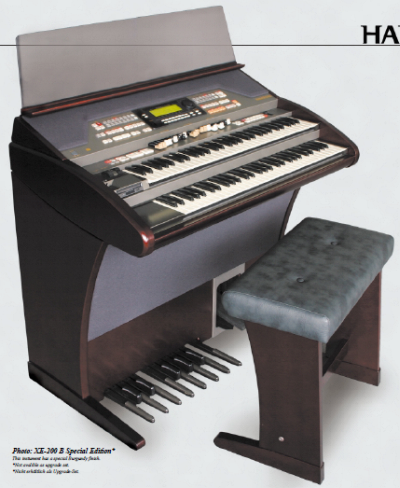

Hammond EX200
This instrument is discontinued

Have you ever yearned to be able to create that exclusive, magical sound and rich depth of tone, only experienced from the unique design of the original ‘Tone-Wheel' Hammonds, and combine it with the hundreds of superbly realistic instrumental voices, the vast array of stimulating rhythmic accompaniments and the extensive, yet easy to use, control features , that are only achievable by the most recent developments in electronic design.

With the futuristic technology contained within this totally new Hammond luxury home organ, dreams become a reality and the previously unattainable blend of traditional sound and modern features is now achieved. We are convinced that by the introduction of this new Hammond XE-200 we will have satisfied your musical aspirations and by employing the very highest standards of quality in manufacturing, the XE-200 will sustain the timeless tradition that is the Hammond Organ.

HAMMOND XE-Series An expandable, keyboard component system that has been developed by the demands of our customers. This new and exciting concept not only meets modern design requirements but also provides the complete Hammond music experience at affordable price levels. Now with the introduction of the XE-200 the totally integrated system is complete, providing a natural progression from single keyboard to full spinet organ with out ever having to change the basic unit. Be convinced. Try the XE-200 for yourself.

XE-200 upgrade set for XE-1 and XE-2. The XE-200 (full spinet organ) can also be created with an upgrade set for the XE-1 or XE-2.

The upgrade set for model XE-1 consists of: • XLK-1 midi control manual (including 2 new side panels). • STE-200, a wooden design substructure with a built-in 13 note pedal-board, expression pedal with footswitch, piano-sustain pedal and additional stereo amplification system (2x 50 Watt). The upgrade set for model XE-2 consists of: • STE-200, a wooden design substructure with a built-in 13 note pedal-board, expression pedal with footswitch, piano-sustain pedal and additional stereo amplification

Hammond XE200 luxury Specifications

Keyboard two 61 note manuals with

Initial touch & 13 pedals

Display 240 x 64 dots graphics

LCD with LED back light

Drawbars 9-Upper, 9-Lower, 2-Bass

Percussion 2nd, 3rd, Soft, Fast

Sound generator PCM Vase-II â„¢ & DRB

Vase-II â„¢ Digital Technology

Organ Effects Leslie : 2 Rotor Digital Leslie,

On/Off, Slow/Fast

Vibrato/Chorus : V1, V2, V3, C1, C2, C3

Effects Reverb : 8 types, Chorus : 8 types

S.E.S. (Sound Expansion System) Echo for MIC input

Voices 275 PCM voices + 28 user voices ,

11 Drum-sets

Equalizer 2 Sections (Rhythm & Voice , Drawbar)

4 elements Parametric (Low, Low-mid,Mid-high, High)

Presets 10 Banks (10 Presets each),

100 Rhythm Presets

Music styles 100 x 4 variations, Disk styles

Start/Stop, Intro/Ending, Fill-in 1,

Fill-in 2 Autoband 1, Autoband 2,

Autobass, Memory, Auto-vari,

Touch start, Touch tempo, Manual Drum

Pro Chord 20

Controls Split, Transpose, Pitch bend, Mod.wheel,

Tempo wheel, Demo, Display contrast

Volume Master volume

Disk drive 3,5 inch 2HD (for Sequencer, Style, Set-up,

Upgrade, SMF (General MIDI) Player)

External- CompactFlash Memory Card

memory slot (8M-128Mbytes)

(for Sequencer, Style, Setup)

Terminals Line out L/R, Line in L/R, Mic In, Mic

Out, Headphone, Expression pedal with

Foot switch, Piano-sustain pedal, Ext.

Leslie 11-pin, Computer interface

(PC,MAC,MIDI IN2), MIDI IN / OUT / THRU

Speakers 2 x Woofer 13cm, 2 x Tweeter 5cm /

2 x Woofer 30cm, 2 x Midrange 10 cm

Amplifier Output 4 x 50W

Accessories* Music-rest, AC-Cord (*XE-200)

Luxury Music-rest, Bench for XE-200 optional

Accessories* Luxury Music-rest, Bench, AC-Cord (*XE-200 B)
