Yamaha DHR15 15 Inch 100w Powered Speakers - Pair
Bundle currently not available. However Bundle componants may be in stock
Other Options
£649.00
Yamaha DXR12 MKII Powered Loudspeaker--Available Now--
| info | specs |
|---|

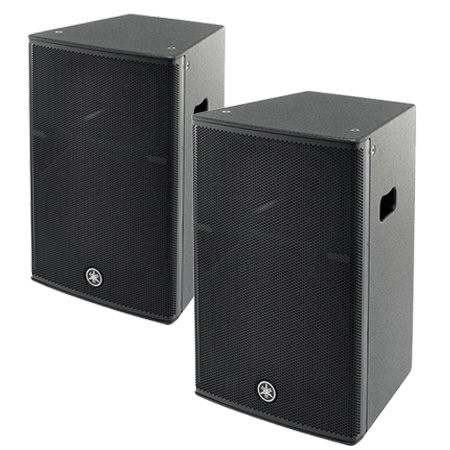

Yamaha DHR15 Powered Speakers - Pair
The Yamaha DHR15 speakers offer a powerl, warm and rich sound perfect for those wanting high quality audio and deep bass for larger venues. A built in 1000w bi-amplified system per speaker powering a 15-inch woofer and a 1.4-inch HF driver offers superior sound control and quality whilst a plywood cabinet with a tough durable coating enhances the overall tone with excellent build quality.
Yamaha DHR15 Speakers Pair Main Features
- Featuring a plywood cabinet that delivers a clear sound with minimal vibration
- Dual rear inputs with volume controls
- Plywood enclosure with a polyurea coating for a robust, scratch resistant surface
- Compact size despite the 15-inch LF driver that provides excellent low frequency response
- Dual-angle pole sockets offer both 0 or a -7 degrees down tilt
- Rigging points for use with eye bolts
- Proprietary FIR-X tuning, provides FIR filtering and corrective EQ, minimizing phase distortion
DHR15 In-Built 2-Channel Mixer
Each Yamaha DHR15 has two input channels on the rear panel. CH1 has a combo jack which accepts both XLR and TRS Phone allowing for either Mic or Line level input signals. CH2 offers two input options - a combo jack that accepts XLR or TRS Phone, and a pair of RCA pin Jacks for input from CD players or other stereo line-level sources.
Powerful 1000w Bi-Amplified System
The DHR15's lightweight, high performance Class-D amplifier is capable of producing up to 1000W of power, achieving an SPL of 131 dB. Despite its large power output there is no sacrifice of quality with intelligent system ensuring maximum quality at all output levels.
Yamaha DHR15 Powered Speaker Specifications
- Speaker type: 2-way, Bi-amped Powered Speaker, Bass-reflex
- Frequency range: (-10dB) 4 Hz - 20 kHz
- Coverage area: H90ﾟ x V90ﾟ
- Crossover 1.8 kHz: FIR-X tuning (linear phase FIR filter)
- Maximum Output Level: (Measured peak, IEC noise@1m) 131 dB SPL
- Components LF Diameter: 15" cone, Voice Coil: 2.5", Magnet: Ferrite
- Components HF Diaphragm: Diaphragm: 1.4", Type: 1" throat compression driver, Magnet: Ferrite
- Amplifier: class Class-D
- Dynamic Power Rating: 1000W (LF: 800 W, HF: 200 W) *1
- Continuous Power Rating: 465 W (LF: 400 W, HF: 65 W)
- Cooling Fan: 4 speeds
- Power consumption: 74 W (1/8power), 18 W (Idle)
- Floor Monitor Angle: 57 Degrees
- A/D D/A Converters: 24 bit 48 kHz Sampling
- Processors HPF: OFF, 100 Hz, 120 Hz, 24 dB/Oct.; D-CONTOUR: FOH/MAIN, MONITOR, OFF
- I/O connectors INPUT1: Combo x1, INPUT2: Combo x 1 + RCA pin x 2 (Unbalanced), OUTPUT: XLR3-32 x 1 (CH1 Parallel Through or CH1+CH2 Mix)
- Rigging: Top x 2, Rear x 1 (Fit for M10 x 30 - 50 mm Eyebolts)
- Cabinet material: Plywood
- Finish: Durable Polyurea Painting, Black
- Handle: Side x1
- Dimensions: 432 mm (17.0") x 692 mm (27.2") (with rubber feet) x 405 mm (15.9")
- Pole socket: Φ35 mm x1 (Bottom)
- Net weight: 24 kg (52.9 lbs)
