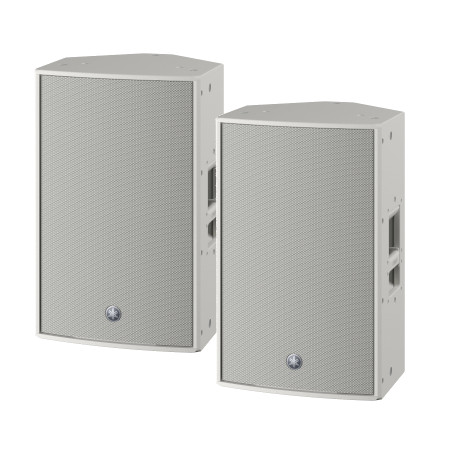

Yamaha Pair of DZR12D Powered Speakers with Dante in White

Yamaha DZR12D 12" 2000w Powered PA Speaker With Dante In white Finish

The Yamaha DZR12DW speakers utilise their very best audio technology offering outstanding performance coupled with powerful sound of up to 2000w per speaker. Finished in a stunning white, they look as incredible as they sound. These Dante speakers allow connection with Dante compatible devices for advanced control and digital sound transfer as well as use with all standard setups using normal Jack or XLR cables. The rear panel offers access to the speaker controls via a backlit LCD display for easy and intuitive use. If you want a powerful, high quality pair of speakers then these should be on your shopping list.

Main Features DZR12DW

• Powerful 2000w peak built-in amplifier system
• Beautiful tough white finish on the cabinets
• Dante technology for digital audio transfer and additional control
• Advanced sound control with FIR-X tuning and D-Contour technology
• 7 Year warranty for complete peace of mind

Advanced FIR-X Tuning

With 2000w of power the DZR range a boasts 96kHz DSP processors which focus all the raw sound to the highest quality whilst still providing you with a super-low latency. The new advanced FIR-X uses Linear filters in the crossover section which allows for a solid rolloff and an ideal phase response. Utilising the FIR filters Yamaha were able to provide a smooth frequency response for stunning clarity and sound imaging without any phase distortion.

Built-In LCD Screen

All new to the DZR range you have a built-in LCD display on the back of every speaker, this provides you with a variety of information which can be used to make sometimes tricky adjustments much easier to change. You are able to quickly and easily adjust things such as the PEQ, Delay, routing options. The DZR12-D also has the ability for you to store presets to USB which allows you to set one speaker up exactly how you like it or even have multiple presets saved to USB. These can be transferred easily and quickly to another speaker meaning the exact same settings on any number of speakers!

D-Contour

The DZR range comes fitted with the new unique D-Contour feature which is a multi-band compressor, the compressor acts in real time to constantly monitor your frequency bands and adjusts the EQ accordingly to ensure your sound has optimum clarity and precision. The D-Contour function has two switchable modes, FOH/MAIN mode which suits front of house/full system situations. The second mode is MONITOR mode which optimises the DZR12-D to work as a wedge monitor which helps by lowering the problematic low frequencies that can become overwhelming by floor reflection.

Custom Designed Transducers

Re-designed for the DZR range, in the 12 we have a HF Transducer which is made up of a 2" Voice Coil, a 1" Throat Compression Driver, a Titanium Diaphragm and Neodymium magnet. This is housed in an extremely durable heat resistant aluminium frame which provides all the protection you could hope for. Yamaha have also added the new LF transducer specifically designed for the new range. The HF uses 3" voice coils housed safely in aluminium and a very strong, lightweight neodymium magnet to handle high power and powerful low frequency response despite being lightweight. The Transducer provides a tight and controlled response especially in the mid-bass vocal range.

Optimised for any situation

As well as the dual function of the D-Contour which allows for Front of House and Monitor options you also have the added benefit of a rotatable horn which can be set either vertically or horizontally. This allows you to adapt your DZR speaker dependant upon the fitment in the venue as well as its purpose. So whether you are using the speaker in a hormonal position (front of house), using it as a wedge monitor or even mounting the DXR horizontally in a venue the horn can be rotated to optimise the sound for either situation.

Solid and Durable Construction

With all of these extremely high quality and expensive components Yamaha have spared no expense in protection! Constructed using 15mm thick plywood and then finished off being painted with a military grade Polyurea coating. To add to this already solid construction each of the edges are connected with butterfly joints for extra additional strength and vibration reduction. The shape of the cabinet on all the DZR speakers allows for perfect mirror when when seated on the floor, they sit at 50 degrees on both sides of the cabinet so mirroring them on stage allows for perfect monitoring, creating a symmetrical sound field and much larger sweet-spot for the performer.

Dante Connectivity

Dante is an intelligent system connection option which makes setting up huge big and more complex system much easier with more control. Combining the Analog I/O with Dante I/O, opens up flexible routing and system configuration options, while the Dante break-IN and break-OUT function add even more flexibility by acting as a simple I/O box.

Yamaha have their own customizable control software "ProVisionare Control" for windows and "ProVisionare Touch" for iPad which Dante compatible; adding simple remote management of your sound reinforcement system.
