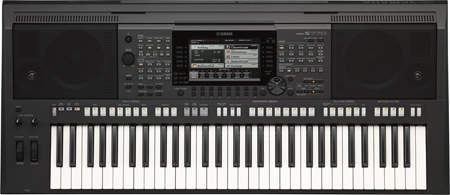

Yamaha PSR-S770 Used This instrument is discontinued
Yamaha PSR-S770 Features
830 Voices, including Super Articulation voices and Organ flutes, 36 Drum/SFX kits, and 480 XG voices
2 Live Controllers for dynamic real-time control assignable to any combination of parameters including filter, arpeggio and more
360 Styles, including all-new DJ styles
Mic/Guitar input for use when singing or collaborating with other performers
New Arpeggio function for instant access to a library of arpeggiated synth phrases and more
Authentic Voices and Styles from around the world
USB audio playback with time stretch, pitch shift, and vocal cancel functions
Yamaha PSR-S770 Get real with your sound
Enjoy realistic Super Articulation Voices, Organ flutes and many other sounds from the legendary Tyros series. The PSR-S770s superb sonic quality, meticulously sampled voices, and a comprehensive suite of effects will take your performances to a new level of authenticity that is sure to satisfy even the most demanding audience.
Powerful features for live performance Yamaha PSR-S770
The PSR-S770 features two assignable live controllers, a modulation wheel and two assignable foot pedal inputs, ensuring that you have total control over voices, styles, effects and other functions during live performance.
Also, DJ Styles are a new live performance concept, featuring a collection of chord progressions that eliminate the need for continuous chord changes with the left hand. Now youve got both hands free to play melody lines, use the Live Controllers, or even trigger additional external audio with the Multi Pads to add a unique flair to your performance.
Yamaha PSR-S770 Large color LCD display
For simple intuitive control of the powerful features and capabilities of this advanced keyboard, the PSR-S770 comes equipped with a large color LCD that allows you to monitor the status of your instrument at a glance, and gives you easy access to valuable performance functions.
More memory, more sounds Yamaha PSR-S770
Voice & Style Expansion Packs enable you to customize the PSR-S770 with a wide range of additional content from all over the world. When loaded into the keyboard, you can instantly access authentic new sounds, rhythms and backing in the musical style of your choice. For even more versatility, use Yamaha Expansion Manager version 2.3 (or later) to link the PSR-S770 to your computer.* Yamaha Expansion Manager allows you to create individual expansion data sets containing content from various packs and utilize the 160MB memory capacity on the instrument. You can even create your own voices based on your samples. We include 4x best of packs in our deal for you convenience (pre-selected) plus you get to choose one additional pack from the Yamaha Musicsoft website to be added into the keyboard - all for free!
*(available during 2015)
Yamaha PSR-S770 Great for singers and guitarists
The PSR-S770 comes equipped with a Mic/Guitar input that allows you to add vocals or guitar to your live performance with ease. Simply plug in a microphone and you can effortlessly assign any of the PSRs versatile effects to the vocals. Or, connect a guitar and adjust the parameters to suit your preference and emulate the sound of your favorite artists or create a sound thats all your own!
USB audio playback with flexible functions Yamaha PSR-S770
Whether youre enhancing a live performance with backing tracks from your music library or just livening up a party with some Karaoke, the time stretch, pitch shift, and vocal cancel functions of the PSR-S770s USB audio player will add depth and versatility to any musical event.
Metallic Dark Grey
Number of Keys
Organ, Initial Touch
Hard1, Hard2, Medium, Soft1, Soft2
TFT Color Wide VGA LCD
English, German, French, Spanish, Italian
Tone Generating Technology
AWM Stereo Sampling
Number of Polyphony (Max.)
Number of Voices
830 Voices + 36 Drum/SFX Kits + 480 XG Voices
67 S.Art!, 23 Mega Voices, 27 Sweet! Voices, 64 Cool! Voices, 71 Live! Voices, 20 Organ Flutes!
Yes (for Song playback)
Yes (approx. 160MB max.)
Right 1, Right 2, Left
52 Presets + 3 User
106 Presets + 3 User
295 Presets + 10 User
5 Presets + 5 User
5 Presets + 2 User
Mic/Guitar effects: Noise Gate x 1, Compressor x 1, 3Band EQ x 1
Number of Preset Styles
322 Pro Styles, 27 Session Styles, 10 DJ Styles, 1 Free Play
Single Finger, Fingered, Fingered On Bass, Multi Finger, AI Fingered, Full Keyboard, AI Full Keyboard
INTRO x 3, MAIN VARIATION x 4, FILL x 4, BREAK, ENDING x 3
.wav (WAV format: 44.1 kHz sample rate, 16 bit resolution, stereo), .mp3 (MPEG-1 Audio Layer-3: 44.1/48.0 kHz sample rate, 64-320 kbps and variable bit rate, mono/streo)
Storage and Connectivity
approx. 13 MB
USB Flash Memory (via USB to DEVICE)
1 (SUSTAIN), 2 (ARTICULATION), Function Assignable
Microphone/Guitar x 1
Stereo mini jack
USB TO DEVICE
USB TO HOST
Amplifiers and Speakers
15 W x 2
13 cm x 2 + 5 cm x 2
PA-300C or an equibalent recommended by Yamaha
Auto Power Off Function
Owner's Manual, Online Member Product Registration, Music Rest, AC Adaptor(may not be include depending on your area. Check with your Yamaha dealer.)
Number of Multi Pad Banks
188 banks x 4 Pads
Korg Pa700 vs. Yamaha PSR-S770 — Sounds Comparison
Korg Pa700 vs. Yamaha PSR-S770 — Styles Comparison
Yamaha PSR-S770 First Look Demo Video
Yamaha PSRS770 Keyboard Review by Staff Member Justin Myerscough
Every now and again myself and colleague Keith Rawlinson get to escape the shop for the day to preview new products with Yamaha , on this occasion it was for the August 2015 launch of the new PSRS series Keyboards - PSR-S670 - PSRS-770 - PSR-S970 and the new CVP700 series Digital Pianos - CVP701 - CVP705 - CVP709
First Impressions of the Yamaha PSR-S770.
The widescreen effect is the first visual difference you notice , compared to the 5" Black and White square screen of the PSRS750, the 7 inch TFT Color Wide VGA LCD screen of the PSR-S770 certainly looks sleeker , more modern , clearer and lesss cluttered than its predecessor.
There are over 152 extra sounds on the S770 when compared to the S750, although obviously the quality rather than quantity of voices is more important , as a general rule the "SA" or "Super Articulation" are amongst the best voices , in this respect the S770 has nearly double the SA voices of its predecessor. Its not all about SA voices though there are some excellent new voices in all the other categories , such as mega , sweet , cool and live voices and 10 more organ flutes.
Previously only the Tyros models have the capacity to have a sensible amount of expansion , the S770 now has 160mb of sample memory, its not nearly as much as the 512mb available on PSRS970 but customers will be able to purchase some "tyros type " expansion packs from www.yamahamusicsoft.com . In addition you can also import third party samples such as those supplied by www.ttt-sounds.com. If anyone has any difficulty in downloading or using their packs all AC Hamilton customers benefit from friendly help and technical support from our affable technical whizz kid Mr Keith Rawlinson whose patience is limitless when coming to the aid of our customers.
MP3 Vocal Cancel
A good facility for a keyboard of this price , you can play MP3's through your S770 and also take the vocals out , this is not an exact science so don't expect it to faithfully delete the vocals to all of your MP3's because it all depends on how it was originally recorded however I tried it on an Adele track and it worked perfectly
You will notice that on the extreme left hand side of the keyboard there are 2 new knobs , these are live controllers , these can be used to choose from the numerous new arpegggiated synth phrases.
New DJ Styles
This is an interesting one , the new DJ styles have a pre programmed chord progression, so your left hand isn't stuck to the keyboard.
Price + Conclusions + PSR-S950 Versus PSR-S770
As a rough guide we usually say that the new lower model is equivalent to the previous higher model , so in other words the S770 is of a similar standard to the S950, actually in this case the S770 in many respects is better than the S950 and when you consider the price ( around 750 GBP ) compared to what the S950 used to sell at ( between GBP1650 at the start of its life down to around GBP1200 towards the end ) its a massive saving . The benefits of the Yamaha PSR-S770 over the PSR-S950 are :
Far superior screen
44 extra voices including 5 additional SA voices
Nearly 3 times the amount of expansion voice memory
